Setting Up a Mock OAuth2/OIDC Server with IdentityServer4 and Docker

The Soluto Github organisation has wrapped up IdentityServer4 in a docker image which can be used to provide an OAuth2 and OIDC standards compliant server for development and testing scenarios.

• oidc-server-mock

Getting Started

The following docker compose file can be used to setup a standard configuration for IdentityServer4. Copy this YAML to a local file docker-compose.yml:

version: "3.4"

services:
  oidc-server:
    image: soluto/oidc-server-mock:latest
    ports:
      - "8010:443"
      - "8020:80"
    environment:
      ASPNETCORE_ENVIRONMENT: Development
      ASPNETCORE_URLS: https://+:443;http://+80
      ASPNETCORE_HTTPS_PORT: 8010
      ASPNETCORE_Kestrel__Certificates__Default__Password: password
      ASPNETCORE_Kestrel__Certificates__Default__Path: /https/aspnetapp.pfx
      AUTHENTICATION:ISSUER: https://localhost:8010
      SERVER_OPTIONS_INLINE: |
        {
          "Authentication": {
            "CookieSameSiteMode": "Lax",
            "CheckSessionCookieSameSiteMode": "Lax"
          }
        }
      USERS_CONFIGURATION_INLINE: |
        [
            {
            "SubjectId":"john@email.com",
            "Username":"John",
            "Password":"Password1!",
            "Claims": [
                {
                  "Type": "email",
                  "Value": "john@email.com"
                },
            ]}
        ]
      CLIENTS_CONFIGURATION_PATH: /tmp/config/config.json

    volumes:
      - ./mock-oidc:/tmp/config:ro
      - ~/.aspnet/https:/https:ro

Creating Client Configuration

The above YAML references a JSON file which provides client configuration information. Copy the below JSON to a local file at mock-oidc/config.json. This file sets up a default client for a sample application called MFT:

[
  {
    "ClientId": "mft-api-dev",
    "Description": "Mock OIDC for running Identity Server locally",
    "AllowedGrantTypes": [
      "authorization_code",
      "client_credentials",
      "password"
    ],
    "AllowAccessTokensViaBrowser": false,
    "RequirePkce": true,
    "RedirectUris": ["http://localhost:3000"],
    "AllowedScopes": ["openid", "profile", "email", "mft_api"],
    "RequireClientSecret": false,
    "ClientSecrets": ["MyMFTSecret"],
    "IdentityTokenLifetime": 3600,
    "AccessTokenLifetime": 3600,
    "Claims": [
      {
        "Type": "aud",
        "Value": "mft_api"
      }
    ]
  }
]

Notes

• The IdentityServer4 Client documents explain what which each property does.
• By default RequirePkce is true set this value to false to enable the simpler Authorization Code flow.

Configuring HTTPS

The YAML shown above references a PFX file which is used to enable HTTPS for the server. We need to generate a certificate with the name aspnetapp.pfx in the user’s https folder. Run the following command to set this certificate up:

dotnet dev-certs https -v -ep "$HOME/.aspnet/https/aspnetapp.pfx" -p password

Note see the MSDN docs for dotnet dev-certs for more information

Starting the Server

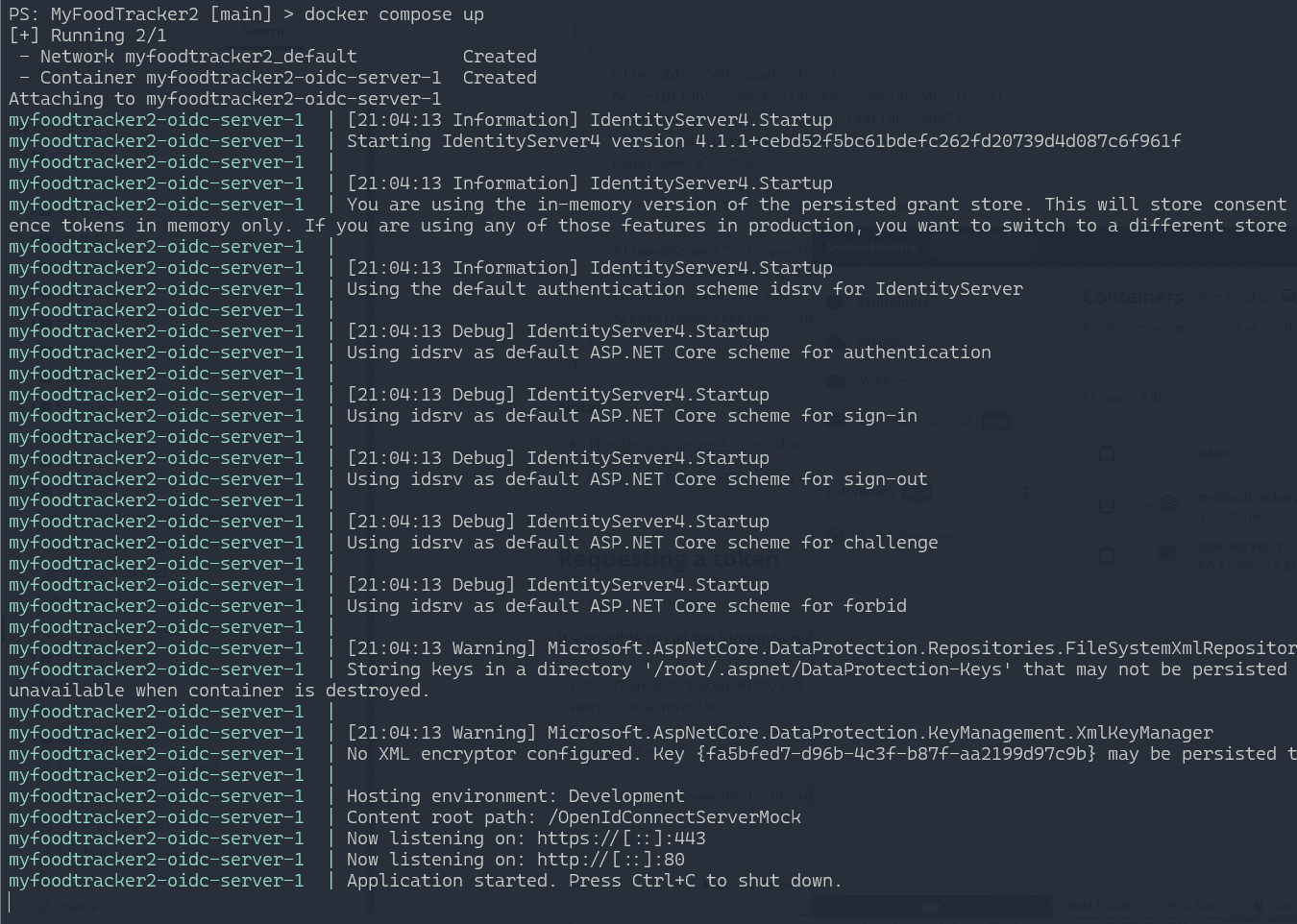

With the config file saved to oidc-mock/config.json, the docker-compose.yml in the root directory and the certificate created we are now ready to run the docker compose up command to start IdentityServer4. On running the command the console will output the logs from the docker image:

Requesting a Token

To test our mock server we can use Postman to call IdentityServer4’s token endpoint using the Resource Owner password flow to retrieve a token. The raw HTTP to initiate the request:

POST /connect/token HTTP/1.1
Host: localhost:8010
Content-Type: application/x-www-form-urlencoded
Content-Length: 101

grant_type=password&client_id=mft-api-dev&client_secret=MyMFTSecret&username=John&password=Password1!

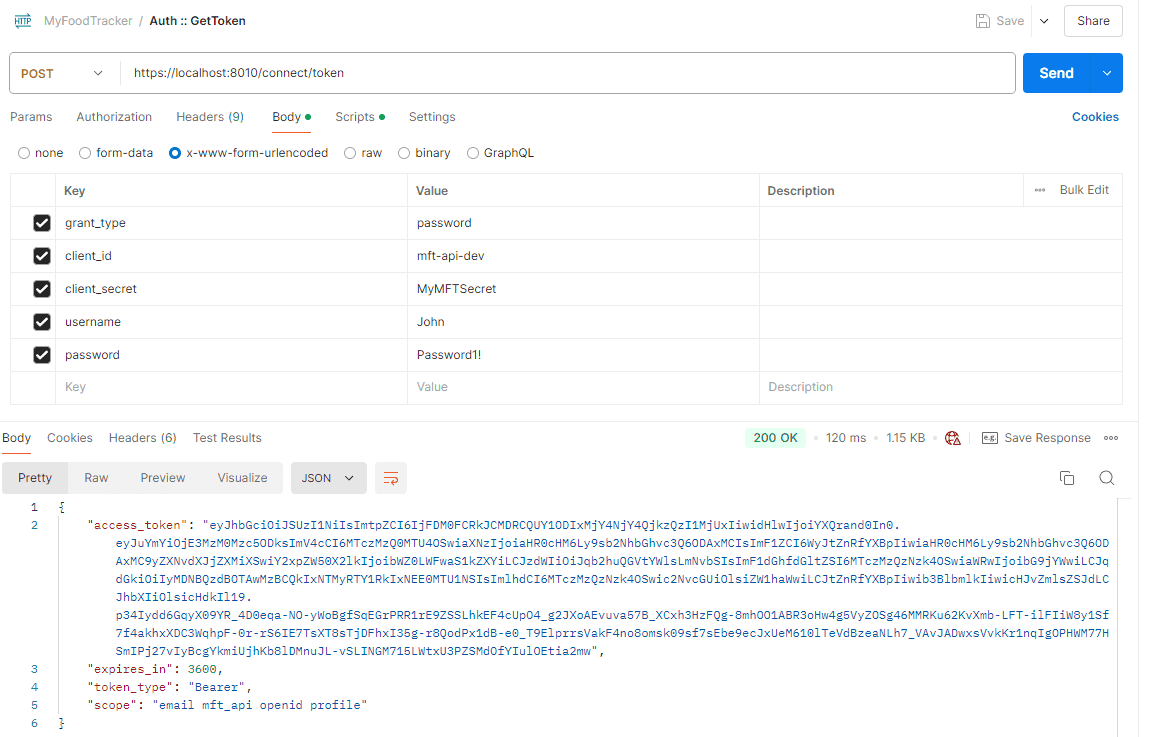

Using Postman, the same request:

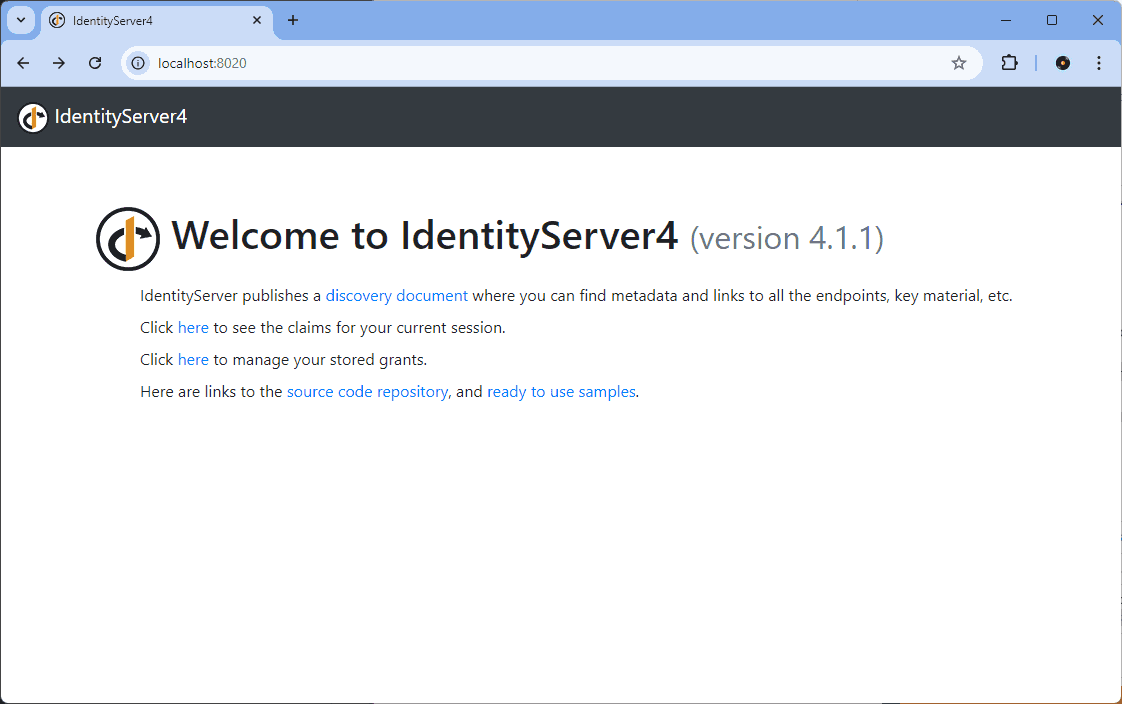

IdentityServer4 also has a web portal and by clicking the “Click here” link to see claims you can force a challenge and be redirected to the login screen. Enter the username John and the password password to authenticate:

IdentityServer4 is now setup and ready for the the configured clients to request tokens. Be sure to read the IdentityServer4 documentation to learn how to configure clients for your scenario.
